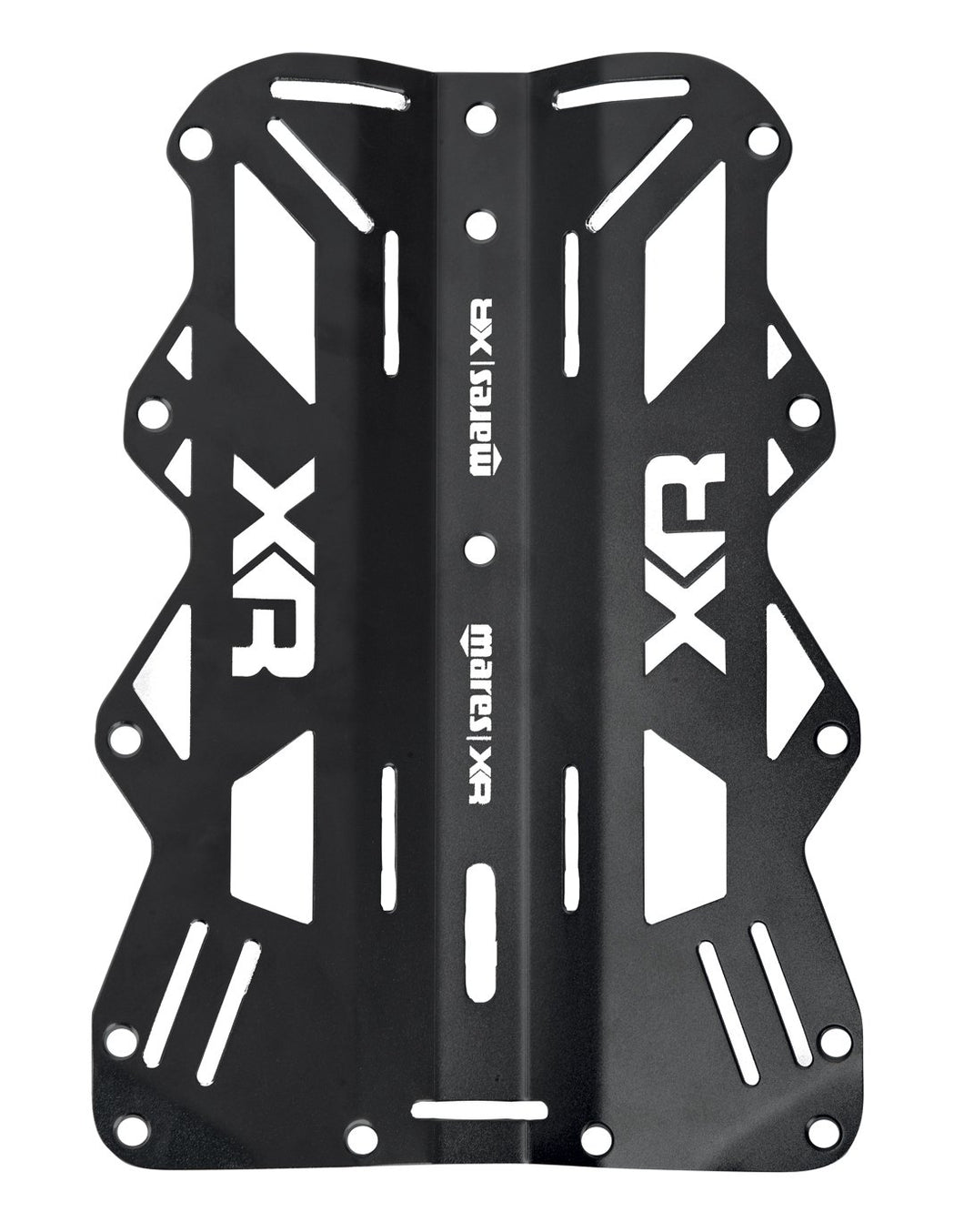

The Mares XR Aluminium Backplate is a skeleton 3mm backplate for a lightweight backplate and wing system. Weighing 0.75kg this is one of the lightest backplates available made from marine grade anodised aluminium.
Lightweight
6061 marine grade anodised aluminium alloy is lightweight and corrosion resistant but still tough enough to hold it's shape with twins. Great for a light weight travel system to mount twins or a secure single cylinder thanks to it's flexible mounting options and multiple fixing points around the backplate for mounting accessories and a sidemount buttplate
Features
6061 MARINE GRADE ANODIZED ALUMINUM ALLOY
13 LASER CUT AND LASER ETCHED SLOTS
8 SLOTS SPECIALLY DESIGNED FOR OPTIMUM POSITIONING OF THE HARNESS WEBBING
2 UPPER AND 2 LOWER SLOTS FOR NYLON CYLINDER BANDS SO A SINGLE CYLINDER CAN BE STRAPPED DIRECTLY
HAVING ONLY 2 SLOTS PROVIDES ENOUGH LATERAL CYLINDER STABILITY WITHOUT WEAKENING THE STRENGTH OF THE SPINE
2" WIDE CROTCH STRAP SLOT
15 HOLES
3 HOLES AT THE TOP OF THE PLATE OFFER A RANGE OF HEIGHT ADJUSTMENTS FOR BUOYANCY CELLS AND CYLINDERS. IN ADDITION, A CORRESPONDING LOWER CENTER SLOT ALLOWS FOR LOWER BAND BOLTS THAT ARE MISALIGNED
4 UPPER AND LOWER PERIMETER HOLES ALONG EITHER SIDE AND 4 HOLES ALONG THE BOTTOM ALLOW FOR MOUNTING ACCESSORIES AND SIDE-MOUNT BUTT PLATE
BENT LOWER EDGES
MARES XR LOGOS AND LAZER CUT SHAPED AXIS
HIGHLY TECHNICAL PRE-SHAPE -UNPARALLELED VERSATILITY
ULTRA-RUGGED UNFOLDABLE BACKBONE
PUSHED TO LIMITS THROUGH INTENSE TESTING
TOTAL MODULARITY: ALL HARNESSES AND DONUTS/WINGS
Specifications
Weight : 750g
Spine Hole Distance from Top,
- 17mm
- 57mm
- 177mm
- 296-339mm
Crotch Strap Slot Width : 2"
